Four-Electrode DC Plasma Smelting Furnace
| Menşe yeri | Çin |
|---|---|
| Marka adı | Shaanxi Chengda |
| Sertifika | ISO 9001 |
| Model numarası | Ekipman işleme kapasitesine göre pazarlık yapın |
| Min sipariş miktarı | 1 adet |
| Fiyat | The price will be negotiated based on the technical requirements and supply scope of Party A |
| Ambalaj bilgileri | A Tarafının özel gereksinimlerine göre tartışın |
| Teslim süresi | 2 ay |
| Ödeme koşulları | L/C,T/T,Western Union |
| Yetenek temini | Üretim tedarik zincirini tamamlayın, zamanında tedarik edin ve kalite standartlarını karşılayın |
Ürün ayrıntıları
| Toplam Güç | 33000kva | Çalışma sıcaklığı | 1600 ° C'ye kadar |
|---|---|---|---|
| Elektrot Çapı | Φ300-600mm | Ağırlık | Modele bağlı olarak genellikle 2-15 ton |
| Kullanmak | Yüksek saflıkta üçlü güç pili | Gaz kullanımı | Yeni temiz enerji |
| Vakum derecesi | Elektrikli veya gazlı ısıtma | Minimum Sipariş Miktarı | Boyut ve özelliklere bağlı olarak değişir |
| Soğutma sistemi | Su soğutmalı veya Hava soğutmalı | Menşei ülke | Şaanksi, Çin |
| Vurgulamak | four-electrode DC smelting furnace,plasma smelting furnace for ferroalloy,DC plasma furnace with four electrodes |
||
Ürün Açıklaması

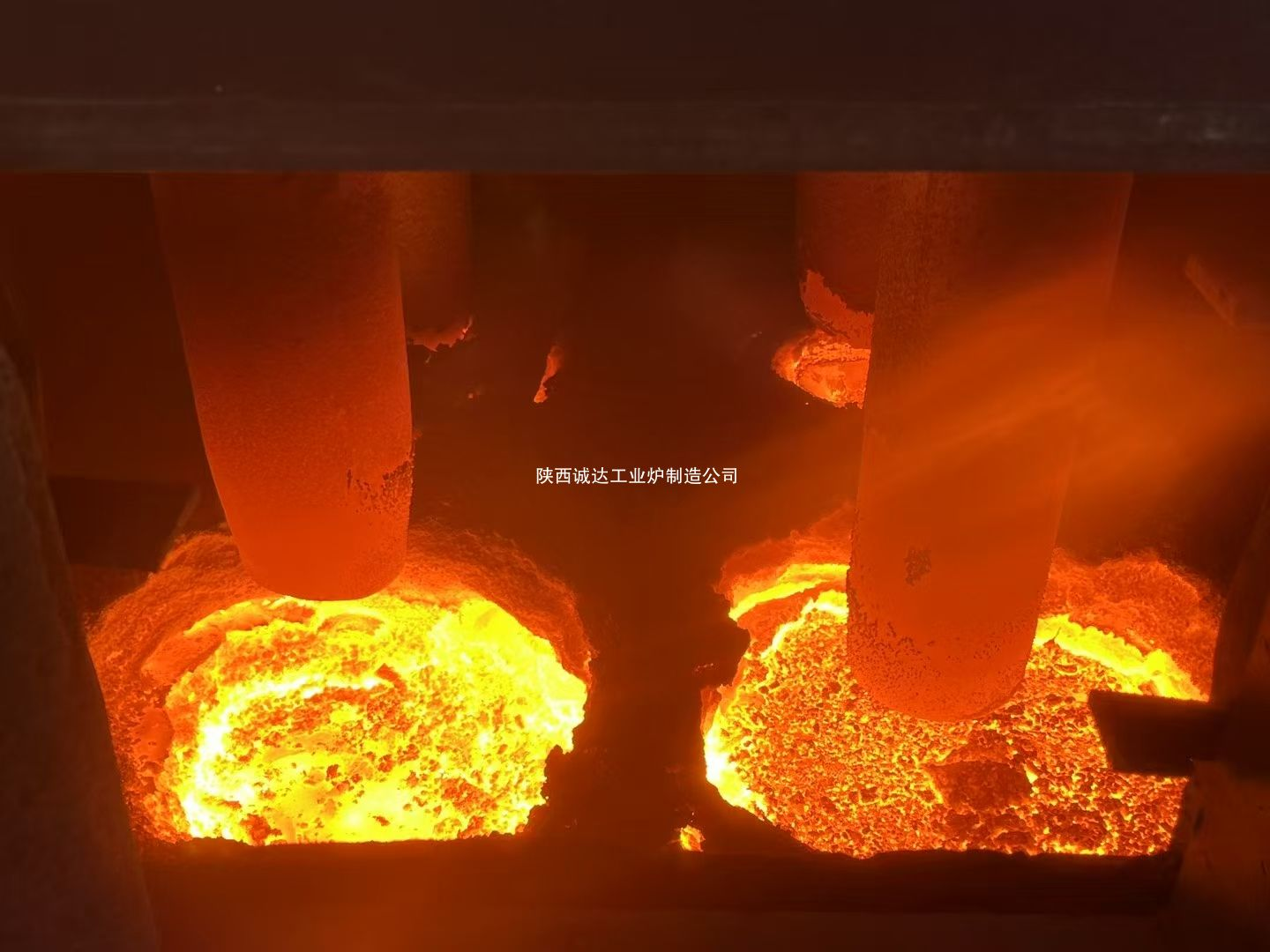

Four-Electrode DC Plasma Smelting Furnace
Equipment & Technical Specification Introduction
1. Equipment Overview & Working Principle
The four-electrode DC plasma smelting furnace is a high-temperature metallurgical unit equipped with four symmetrically arranged DC plasma torches/graphite electrodes and DC rectifier power supply plus plasma gas supply system. It generates high-temperature plasma arc at 5,000~8,000℃ by ionizing inert gas (argon/nitrogen) under direct current. Adopting DC transferred arc smelting process, a water-cooled anode is embedded at furnace bottom to form a complete conductive loop. Four electrodes are arranged symmetrically in a rectangular layout to realize uniform heating across the molten bath, which differentiates it from single-electrode furnaces and three-phase AC arc furnaces. It is specially designed for refractory metals, ferroalloys, solid waste recycling (red mud/aluminum residue), and precious metal recovery.
Process Flow: Mains AC → step-down transformation → rectified into DC → four cathode electrodes powered up + process gas fed → high-frequency ignition to form non-transferred pilot arc → transferred main arc ignited between cathode and bottom anode → raw materials melted by ultra-high plasma temperature; sealed furnace enables smelting under inert atmosphere with precise oxygen control.
2. Five Core Assemblies of Furnace Structure
(1) Furnace Body Assembly
- Furnace Shell: Steel plate welded structure with water-cooled jacket, fully sealed negative-pressure design, fitted with flue gas hood for exhaust collection.
- Furnace Lining: Magnesia-carbon brick/corundum castable for high-temperature zone; erosion-resistant precast refractory bricks at slag line; water-cooled copper crucible equipped for lab/pilot-scale furnaces while fixed refractory hearth for large industrial units.
- Furnace Bottom: Embedded water-cooled metal anode (positive pole of DC circuit); optional electromagnetic stirring coil to homogenize bath temperature and chemical composition.
(2) Core Four-Electrode Plasma System
Four plasma torches/graphite electrodes mounted at four rectangular corners with independent servo lifting mechanism, hydraulic fine adjustment and automatic current/voltage stabilization.
- Standard Plasma Torch: Water-cooled cerium-tungsten cathode + water-cooled copper compression nozzle with full jacket circulating cooling.
- Two electrode options: ① Plasma torch for high-purity special metallurgy; ② Impregnated graphite electrode for ore reduction smelting. Four independent power circuits allow continuous low-load operation of remaining three electrodes when single unit under maintenance.
(3) DC Rectifier Power Supply System
High-voltage distribution → step-down transformer → high-power SCR rectifier cabinet with four independent DC current-stabilized power sources. Separate power loop for each electrode to suppress arc fluctuation and improve thermal efficiency at 78%~82%.
(4) Process Gas Supply System
Multi-channel precision pressure-stabilized gas supply for high-purity argon, nitrogen and hydrogen mixture. Process gas injected through center of plasma torches; furnace chamber adjustable between vacuum and slight positive pressure to realize oxygen-free smelting. Complete with mass flow meters, pressure regulators and emergency cut-off valves.
(5) Automation & Auxiliary System
PLC full-process automatic control for electrode lifting, power regulation, gas supply, cooling water interlock and real-time temperature monitoring; matched circulating cooling water station, flue gas dedusting system, sealed feeding unit and tapping/slagging mechanism.
3. Key Equipment Advantages
- Symmetric four-electrode layout ensures even bath temperature with fluctuation ≤±50℃ and minimal component segregation, ideal for high-purity alloy & single crystal production.
- Ultra-high plasma arc temperature (5,000~8,000℃ vs. max 3,000℃ of conventional AC arc), boosting melting efficiency by over 40% for refractory oxide such as alumina and red mud.
- Stable DC current reduces electrode consumption by 35%~50% compared with three-phase AC furnaces to cut running cost.
- Flexible atmosphere control: vacuum/inert/reducing atmosphere available via sealed furnace to avoid metal oxidation; precious metal recovery rate ≥92%.
- High operational tolerance: independent four-circuit power design avoids full-line shutdown for single-electrode overhaul.
4. Main Application Fields
- Special Metallurgy: Melting of Ti, Zr, W, Mo, Nb and other refractory metals, superalloy & high-entropy alloy for aerospace industry.
- Solid Waste Resource Utilization: Red mud ironmaking, calcium aluminate smelting, silicon/ferrous metal recovery from steel slag/fly ash and hazardous waste vitrification treatment.
- Ferroalloy Production: Metallic silicon, ferrosilicon, ferrochrome and ferronickel reduction.
- Advanced New Materials: High-purity ceramic powder, nitride/oxide raw material synthesis.
II. Graded Technical Parameters (Lab / Pilot / Large Industrial Grade)
1. Lab Four-Electrode Vacuum Plasma Furnace (50~200kW, lab ingot sample)
| Item | Specification |
|---|---|
| Rated Total Power | 50kW / 100kW / 200kW (split into four equal single-torch power) |
| Single Electrode DC Parameter | No-load:80~120V; Working voltage:25~55V; Max single-pole current:1,500A |
| Ultimate Vacuum | 6.7×10⁻⁴Pa, pressure rise rate ≤0.5Pa/h |
| Smelting Temperature | 2,200~3,200℃ |
| Single Batch Feeding Capacity | 50g ~ 2kg |
| Protective Gas | High-purity Argon (99.999%), single-torch Ar flow:0.5~3Nm³/h |
| Total Cooling Water Consumption | 8~25m³/h |
| Control Mode | PLC + HMI touch screen auto-control, auto high-frequency arc transfer |
2. Pilot Industrial Furnace (500kW~3,000kW, semi-continuous batch production)
| Item | Specification |
|---|---|
| Installed Total Power | 500 / 1,250 / 2,500 / 3,000kW, evenly split into four power loops |
| DC Output | Working voltage:60~110V; Total current:3,000~25,000A (four-way equal split) |
| Daily Output | 0.8~8 tons (varies by raw material property) |
| Power Consumption per Ton | 520~750kWh/t for alloy smelting; 9,800~11,500kWh/t for metallurgical silicon reduction |
| Total Gas Consumption | 12~45Nm³/h argon, switchable to nitrogen |
| Circulating Cooling Water | 60~220m³/h, inlet water temp ≤32℃ |
| Service Life of Furnace Lining | 120~180 heats for regular smelting |
| Working Condition | Slightly positive sealed atmosphere, optional intermittent vacuum mode |
3. Large-Scale Industrial Four-Electrode DC Plasma Submerged Arc Furnace (5MW~25MW, mass production line)
| Item | Specification |
|---|---|
| Rated Installed Power | 5MW~25MW with four independent rectifier power sources |
| Total Working Current | 30,000~150,000A balanced among four poles |
| Daily Raw Material Handling | 25~120 tons, finished product output:10~55 tons |
| Power Consumption per Ton | 8,500~11,000kWh/t for ferroalloy; 600~900kWh/t for solid waste recycling |
| Plasma Process Gas | N₂-Ar mixed gas, total consumption:80~350Nm³/h |
| Total Cooling Water | 350~1,200m³/h |
| Flue Gas Treatment | Negative-pressure gas collection + dry-type dedusting system |
| Automation | Full DCS remote control with intelligent electrode lifting & power stabilization |
III. Optional Auxiliary Configurations
- Electromagnetic Stirring System: 0~50Hz variable-frequency adjustable stirring intensity for molten bath.
- Fully Sealed Continuous Feeder: Screw-type sealed feeding to prevent ambient air infiltration.
- Vacuum Pump Unit: Mechanical pump + molecular pump set (optional for ultra-high purity material production).
- On-line Temperature Measuring & Sampling: Continuous infrared pyrometer and in-furnace real-time sampling analyzer.
