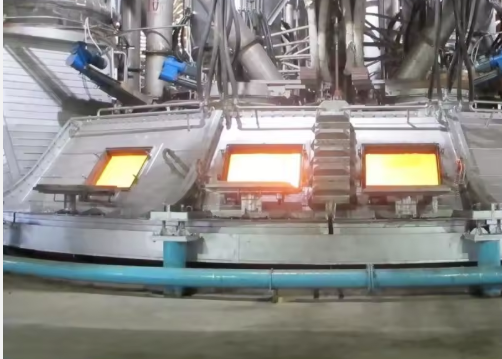

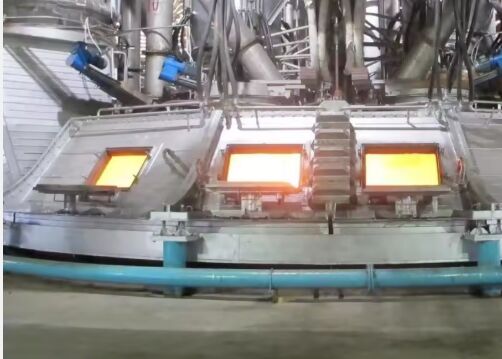

Advanced Submerged Arc Furnace With Low Leakage Rate

Menşe yeri Çin
Marka adı Shaanxi Chengda
Sertifika ISO 9001
Model numarası Ekipman işleme kapasitesine göre pazarlık yapın
Min sipariş miktarı 1 adet
Fiyat The price will be negotiated based on the technical requirements and supply scope of Party A
Ambalaj bilgileri A Tarafının özel gereksinimlerine göre tartışın
Teslim süresi 2 ay
Ödeme koşulları L/C,T/T,Western Union
Yetenek temini Üretim tedarik zincirini tamamlayın, zamanında tedarik edin ve kalite standartlarını karşılayın
Ürün ayrıntıları
Vurgulamak

submerged arc furnace low leakage

,

ferroalloy smelting submerged arc furnace

,

submerged arc furnace ferroalloy equipment

Mesaj bırakın
Ürün Açıklaması

Key attributes


type
Arc Furnace
voltage
10KVA
usage
Melting Furnace
key selling points
Energy Saving
warranty
1 Year
core components
PLC, Motor, Pump
machinery test report
Provided
video outgoing-inspection
Provided
place of origin
Shaanxi, China
weight (t)
50
brand name
HAN
dimension(l*w*h)
Customization Size
Keyword
Submerged Arc Furnace
Heat Source
Electric Arc
Melting Material
Scrap Steel
Final product
Ferrosilicon Ferromanganese Ferrochrome
Feature
Energy Saving
Application
Reduce Smelting Ore
Capacity
50ton
Product Name
Submerged Arc Furnace
Certification
CE
Temperature control
Automatic

Packaging and delivery

Selling Units
Single item
Specification
Transformer apparent power
KVA
3×11000
Single phase
Furnace type

Low hood submerged arc furnace

Production varieties

High carbon ferrochrome

Daily output
t
178

Annual output
t
58740
330days
Iron furnace times
times
8
within24h
Average amount of iron
t/furnace
22

Maximum amount of iron
t/furnace
22

Electrode diameter
mm
1550
Self-baking electrode
Extreme circle diameter
mm
3850

Furnace diameter
mm
9500

Furnace shell diameter
mm
12000
Inner diameter
Secondary voltage
v
154-226-265
Inner diameter
Rated current
A
84310

Common secondary voltage
v
226

Common secondary current
A
84310

Electrode working stroke
mm
1400

Electrode maximum stroke
mm
1800

Electrode maximum stroke
mm
20500

Transformer platform height
mm
12000

Our Services
1. Customize according to your requirements and provide you with an effective quotation.
2. We have professional engineers to design the plan for you.
3. Our team will provide professional advice and help for your whole project.
4. Our factory is always ready to welcome field visits.
5. Ensure high quality after-sales service.


FAQ
Q1: Are you trading company or manufacturer?
A: We are manufacturer.
Q2: How long is your delivery time?
A: Generally it is 60 days, it is according to quantity requires.
Q3: What is the term of payment?
A: Payment <=1000USD,100%in advance. Payment>=1000USD,30% T/T in advance, balance before shipment.


lf you are interested in this equipment, please don't hesitate to contact us!

lf the machine is not suitable for your plant, please e-mail us the following information:

1. What's the quality standard of billet do you want to casting? ls it common carbon steel or low carbon steel?
2. What's the billet size and length?
3. Do you have melting furnace? lf yes, how many tons of furnace with how many quantity?
4. What's the capacity per hour? According to your information, we will offer high efficiency design and best price for it.
